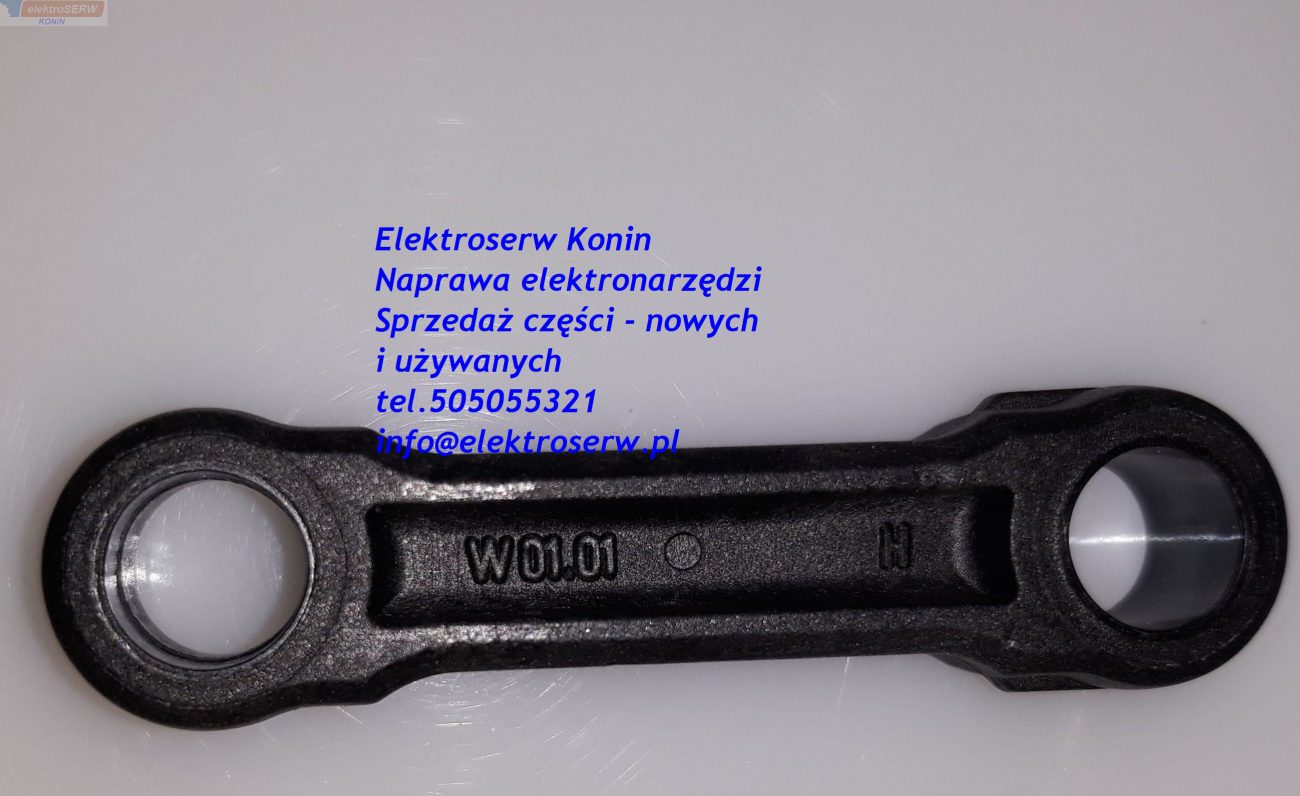

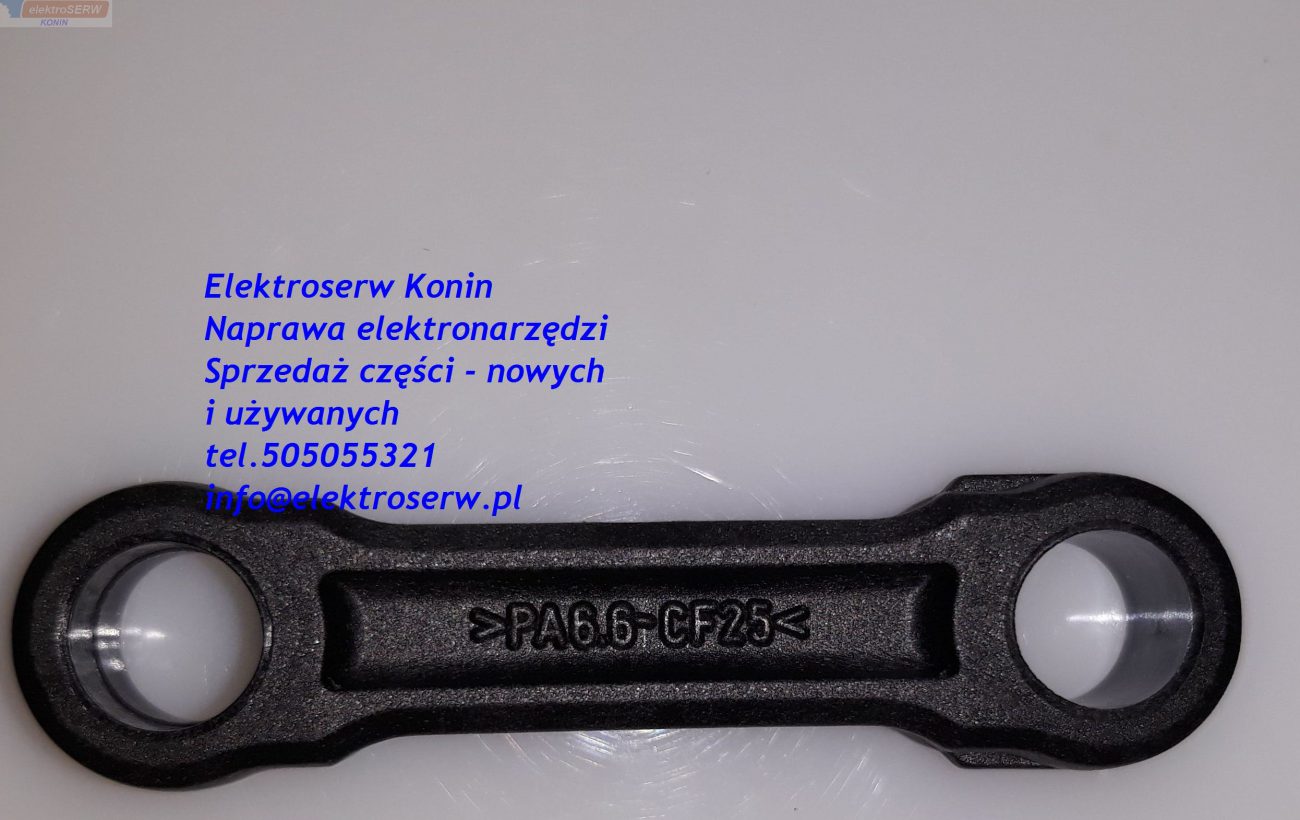

Hilti korbowód do wiertarki TE 7-A
Hilti - korbowód - nowy oryginalny
Numer katalogowy : 344759
Pozycja na schemacie nr 41

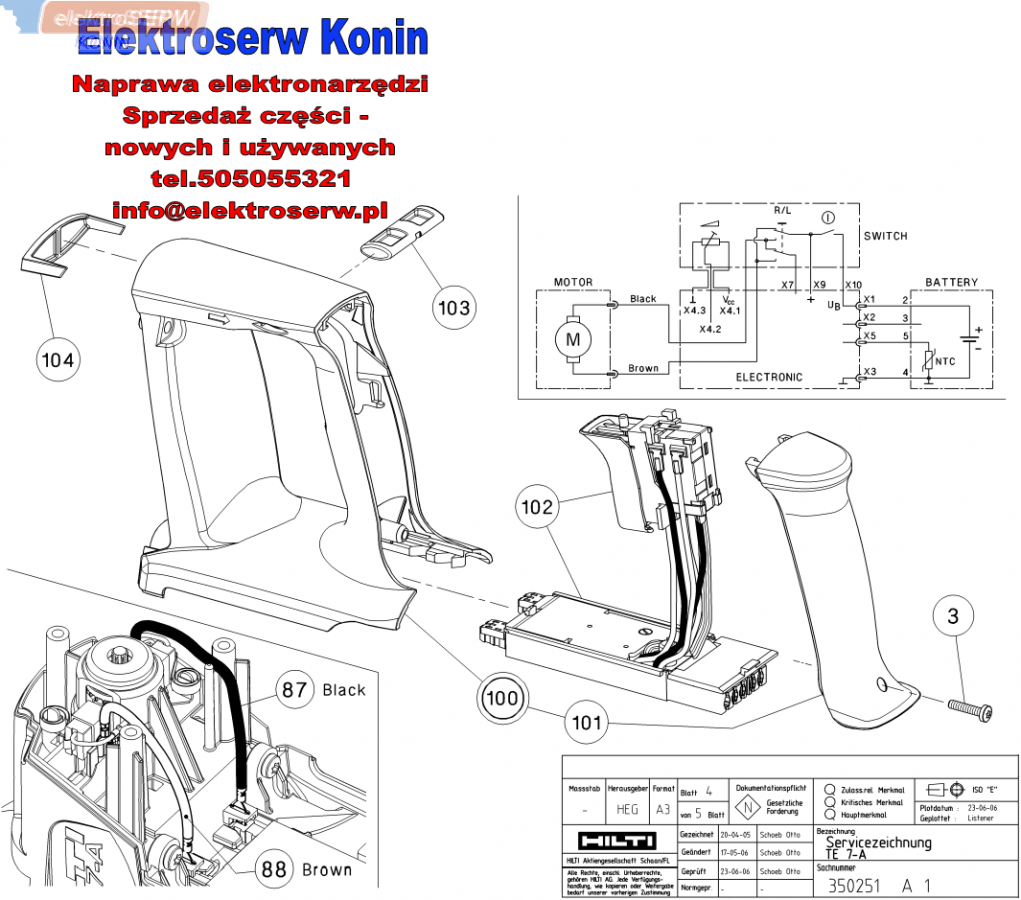

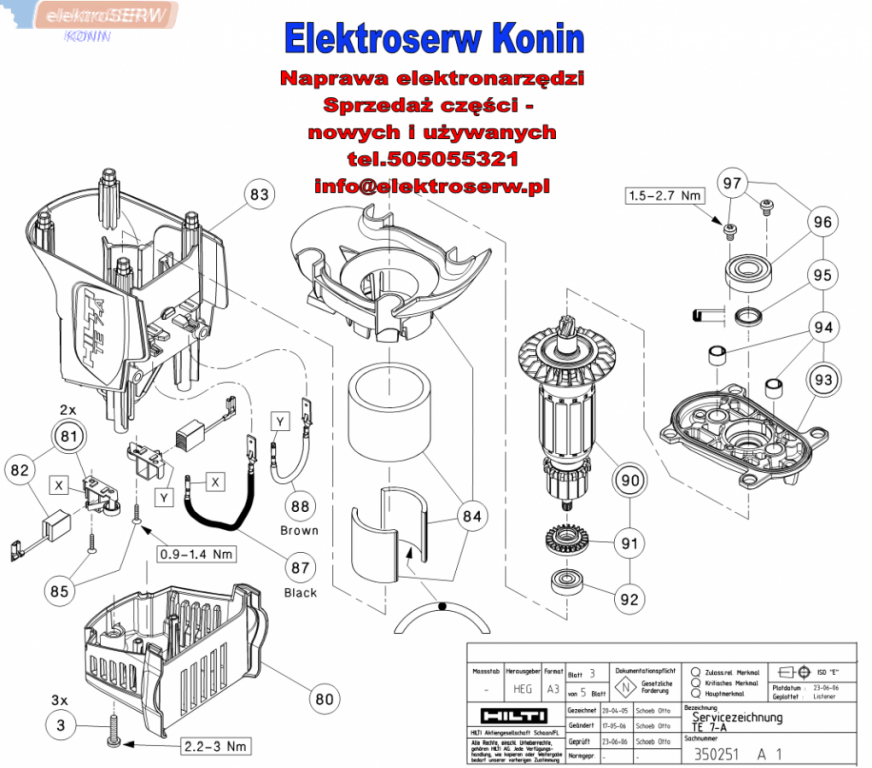

Spis części zamiennych do młotowiertarki 349300 TE 7-A
Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa części |
| 1 | 327315 | Casing |
| 2 | 240912 | Switch |
| 3 | 207960 | Torx-soc re scr 4X18 T15 black |
| 4 | 327953 | O-ring 74x2 |
| 5 | 240437 | Torx-soc re scr 4X30 T15 black |
| 6 | 349305 | Rating plate TE 7-A |
| 7 | 279515 | Torx-soc re scr 5X28 T20 black |
| 8 | 240906 | Cap assy |
| 9 | 76460 | Circlip J47 |
| 10 | 76487 | Circlip 17X2 |
| 11 | 328679 | Stop |
| 12 | 240915 | Sealing ring 18.25x14.85x2.93 |
| 13 | 240908 | Ram |
| 14 | 240916 | O-ring 9.19x2.62 |
| 15 | 328307 | Spring clip |
| 17 | 328752 | Absorber |
| 18 | 328655 | Retaining ring 18 fuer Bohrung |
| 19 | 328657 | Stop |
| 20 | 328682 | O-ring 11x3,5 |
| 21 | 328580 | Detent sleeve |
| 22 | 75719 | O-ring 12,29X3,53 |
| 23 | 328306 | Ball bearing 25x47x8 |
| 24 | 328582 | Supporting washer 1 |
| 25 | 328681 | O-ring 25x4 |
| 26 | 328656 | Washer 22x35x1,7 |
| 27 | 328587 | Retaining ring SW22 |
| 30 | 17972 | Ball 7 G20 |
| 31 | 328579 | Guide tube |
| 32 | 287331 | Cone |
| 33 | 287362 | Compression spring 5,3x39,1x32,4 |
| 34 | 287330 | Washer |
| 35 | 201095 | Retaining ring RW28 |
| 36 | 240858 | Striker piston |
| 37 | 349862 | O-ring 16,0x3,0 |
| 38 | 328647 | O-ring 16x3 |
| 39 | 328839 | Drive piston SV finpt |
| 40 | 76406 | Dowel pin 7X20 |
| 41 | 344759 | Conrod |
| 45 | 287361 | Compression spring |
| 46 | 240904 | Coupling ring Meisselarretierung |
| 47 | 287363 | Compression spring |
| 48 | 240907 | Coupling |
| 49 | 344751 | Bevel gear Z=38 |
| 50 | 328889 | Gear housing assy |
| 51 | 328888 | Bow assy |
| 52 | 276611 | O-ring 9X2 |
| 53 | 349671 | Leaf spring |
| 54 | 74154 | O-ring 18X2 |
| 55 | 240909 | Setting rod Getriebeschalter |
| 58 | 344750 | Bevel pinion Z=9 |
| 59 | 70415 | Feather key 3X3X7.7 |
| 60 | 328345 | Ball bearing 9x24x7 |
| 61 | 76582 | Circlip 24X1,2 |
| 62 | 344782 | Toothed gear Z=41 *SINT* |
| 63 | 70421 | Circlip 8X0,8 |
| 64 | 240911 | Setting plate |
| 65 | 344761 | Sheet metal part |
| 66 | 287384 | Torx-soc tapt scr M4X8 T15 |
| 67 | 240842 | Eccentric TE7 |
| 68 | 240844 | Ball bearing 17x30x7 |
| 69 | 76824 | Circlip JV30 |
| 70 | 71820 | Compression spring 1,15X17,9X12 |
| 71 | 327313 | Coupling sleeve TE7 |
| 72 | 240872 | Toothed gear Z=33 |
| 73 | 344822 | Supporting ring |
| 74 | 343511 | Retaining ring SW8VERSTAERKT |
| 80 | 349304 | Motor housing end cap TE 7-A |
| 81 | 328152 | Brush holder 2 OAO assy |
| 82 | 349298 | Carbon brush 8x12,5x16,7OAO AKKU |
| 83 | 349288 | Motor housing TE 7-A printed |
| 84 | 328488 | Stator 36V SERV assy |
| 85 | 328413 | Torx-soc csk head screw 3x14 |
| 87 | 327964 | Flexible conductor AWG 14 (132mm) |
| 88 | 328372 | Flexible conductor AWG 14 (120mm) |
| 90 | 328489 | Rotor 36V SERV assy |
| 91 | 326772 | Labyrinth seal |
| 92 | 327381 | Ball bearing 6X19X6 |
| 93 | 328886 | Bearing plate assy |
| 94 | 76583 | Bearing bushing 10X8X8 |
| 95 | 328346 | Sealing ring 12x16x3 |
| 96 | 328288 | Ball bearing 12x28x8 |
| 97 | 278803 | Taptite screw 4X6 black |
| 100 | 240917 | Grip unit |
| 101 | 327880 | Grip cover 36V |
| 102 | 328467 | Electrical assembly set packed |
| 103 | 327967 | Reversing switch 36 V |
| 104 | 328922 | Air deflector |
| 110 | 354585 | Side handle assy |
| 111 | 73131 | Depth gauge |
| 703 | 30215 | Oil Turmopol 20HD 1L |
| 819 | 320560 | Grease 1KG ALN1001/0 |
